Specifications

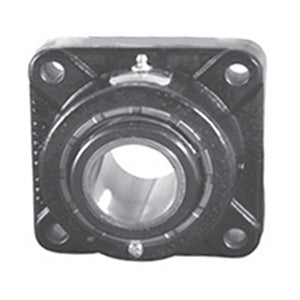

| title | MF5215S |
| price | $ 1,300.53 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 26.9 |
| Bore | 2.938 Inch | 74.625 Millimeter |
| EAN | 698210702526 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 555206 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.875 Inch | 123.825 Millimeter |
| Cartridge Pilot Diameter | 6.313 Inch | 160.35 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 6.016 Inch | 152.806 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.5 Inch | 215 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 5215U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
