FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

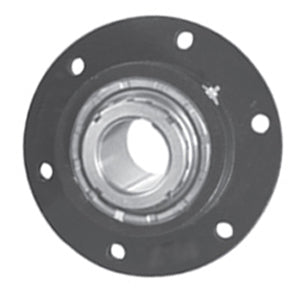

| title | MF9315YSGR43 |
| price | $ 5,437.83 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 94 |
| Bore | 3.938 Inch | 100.025 Millimeter |
| EAN | 698210932176 |
| Other Features | Double Row | Face Locked Threaded Cover |
| Relubricatable | Yes |
| Global Part Number GPN | 555278 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 5.531 Inch | 140.5 Millimeter |
| Cartridge Pilot Diameter | 10.375 Inch | 263.53 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 6.438 Inch | 163.525 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.9 Inch | 327.7 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 9315YU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Heavy Contact |
| Pilot Configuration | With Pilot |
