Specifications

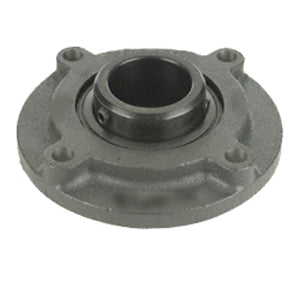

| title | MFCD-40 |
| price | $ 825.28 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 14.6 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 662461017050 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 19373 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.5 Inch | 88.9 Millimeter |
| Cartridge Pilot Diameter | 5.5 Inch | 139.7 Millimeter |
| Cartridge Pilot Depth | 1.125 Inch | 28.575 Millimeter |
| Bolt Spacing | 4.6 Inch | 117 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.5 Inch | 165 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 9/16 Inch |
| Insert Part Number | 3-28D |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | With Pilot |
