Specifications
| title | MSFD-56 |
| price | $ 1,890.87 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 30.9 |
| Bore | 3.5 Inch | 88.9 Millimeter |
| EAN | 662461134764 |
| Other Features | Single Row | Medium Duty | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 12188 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.438 Inch | 112.725 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.75 Inch | 171.45 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.6 Inch | 244.9 Millimeter |

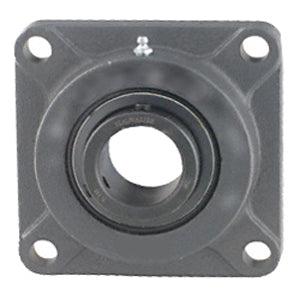

| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 25/32 Inch |
| Insert Part Number | 3-38D |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
