Specifications

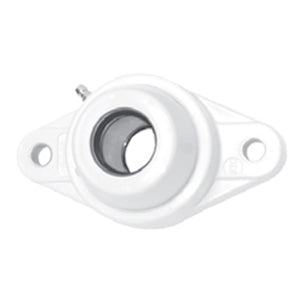

title | PAVNFL205-16W |
price | $ 85.59 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | ASAHI BEARINGS |
Weight / kgm | 0.163 |
Inch - Metric | Inch |
Brand | AMI BEARINGS |
Weight / LBS | 0.14 |
Bore | 1 Inch | 25.4 Millimeter |
EAN | 0808250140039 |
Other Features | Light Duty | White Housing |
Relubricatable | No |
Global Part Number GPN | 532353 |
Mounting Method | Not Applicable |
Length Thru Bore | 0 Inch | 0 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 3 Inch | 76.2 Millimeter |
Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
Housing Style | 2 Bolt Flange Block |
Number of Mounting Holes | 2 |
Housing Configuration | 1 Piece Solid |
Housing Material | Thermoplastic |
Expansion / Non-expansion | Non-expansion |
Pilot Configuration | No Pilot |
