Specifications

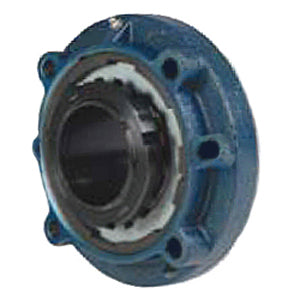

| title | QMCW30J507SO |
| price | $ 5,569.45 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 226 |
| Bore | 5.438 Inch | 138.125 Millimeter |
| EAN | 883450258944 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 537782 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 7.56 Inch | 192.024 Millimeter |
| Cartridge Pilot Diameter | 13 Inch | 330.2 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.25 Inch | 184.15 Millimeter |
| Nominal Bolt Circle Diameter Round | 14.5 Inch | 368.3 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | 23230 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Pilot Configuration | With Pilot |
