Specifications

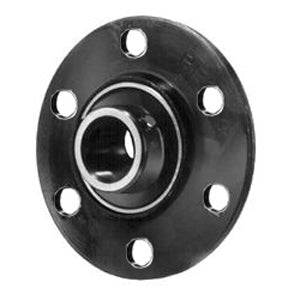

| title | QVFKP26V115SET |
| price | $ 4,564.50 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 108 |
| Bore | 4.528 Inch | 115 Millimeter |
| EAN | 883450970273 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Mounting Method | V Lock |
| Length Thru Bore | 5.819 Inch | 147.8 Millimeter |
| Cartridge Pilot Diameter | 11.188 Inch | 284.18 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 7 Inch | 177.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 14 Inch | 355.6 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 28.6 Millimeter |
| Insert Part Number | 22226 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Teflon Labyrinth |
| Pilot Configuration | With Pilot |
