FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

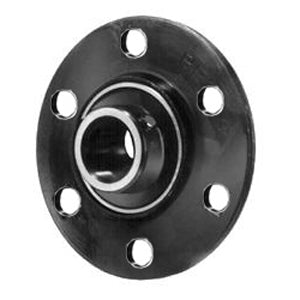

| title | QVFX28V415SO |
| price | $ 4,568.70 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Inch |
| Brand | QM INDUSTRIES |
| Weight / LBS | 115 |
| Bore | 4.938 Inch | 125.425 Millimeter |
| EAN | 883450338882 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Mounting Method | V Lock |
| Length Thru Bore | 5.82 Inch | 147.828 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7 Inch | 177.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 14 Inch | 355.6 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1-1/8 Inch |
| Insert Part Number | 22228 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Triple Lip Urethane |
| Pilot Configuration | No Pilot |
