Specifications

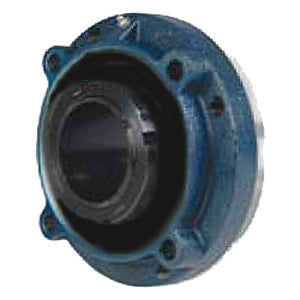

| title | QVFY11V050SEC |
| price | $ 496.57 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 12 |
| Bore | 1.969 Inch | 50 Millimeter |
| EAN | 883450143851 |
| Other Features | Double Row | Single Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 540832 |
| Mounting Method | V Lock |
| Length Thru Bore | 3.14 Inch | 79.756 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.07 Inch | 103.378 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 4 Bolt Round Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 22211 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Expansion |
| Seals | Double Lip Viton |
| Pilot Configuration | No Pilot |
