Specifications

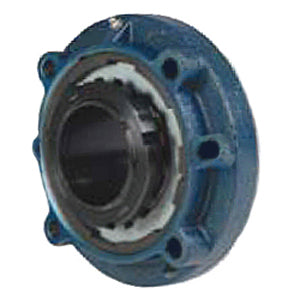

| title | QVVCW28V130SC |
| price | $ 5,434.30 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | QM INDUSTRIES |
| Inch - Metric | Metric |
| Brand | QM INDUSTRIES |
| Weight / LBS | 102 |
| Bore | 5.118 Inch | 130 Millimeter |
| EAN | 883450140621 |
| Other Features | Double Row | Double Nut |
| Relubricatable | Yes |
| Global Part Number GPN | 539243 |
| Mounting Method | V Lock |
| Length Thru Bore | 7.02 Inch | 178.3 Millimeter |
| Cartridge Pilot Diameter | 11 Inch | 279.4 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.375 Inch | 161.925 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.8 Inch | 325.1 Millimeter |
| Housing Style | 6 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | 22228 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Double Lip Viton |
| Pilot Configuration | With Pilot |
