Specifications

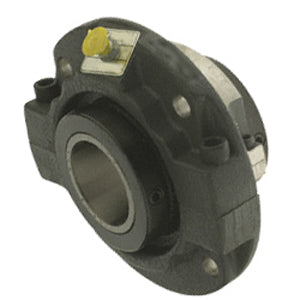

| title | RFPA 200C CR |
| price | $ 785.42 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 11.6 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 662288863571 |
| Other Features | Double Row | Heavy Duty | Single Collar | Corrosion Resistant | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.953 Inch | 75 Millimeter |
| Cartridge Pilot Diameter | 4.5 Inch | 114.3 Millimeter |
| Cartridge Pilot Depth | 1.25 Inch | 31.75 Millimeter |
| Bolt Spacing | 3.818 Inch | 96.977 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | RCIA-200-C |
| Housing Configuration | 2 Piece Split |
| Housing Material | Fluoropolymer Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
