Specifications

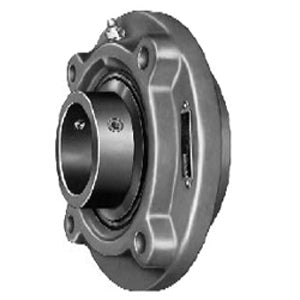

| title | SFC-209TMC RM |
| price | $ 322.02 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Metric |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 6.3 |
| Bore | 1.772 Inch | 45 Millimeter |
| EAN | 662461345665 |
| Other Features | Single Row | Standard Duty | Skwezloc | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553546 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.938 Inch | 49.225 Millimeter |
| Cartridge Pilot Diameter | 4.252 Inch | 108 Millimeter |
| Cartridge Pilot Depth | 0.433 Inch | 11 Millimeter |
| Bolt Spacing | 3.6 Inch | 91.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 14 Millimeter |
| Insert Part Number | 5209TMC-RM |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
