FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

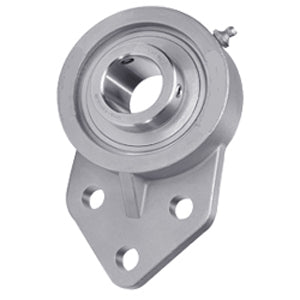

| title | SNASFB 210 31 |
| price | $ 447.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Bore | 1.938 Inch | 49.225 Millimeter |
| Other Features | Single Row | Corrosion Resistant | Stainless Steel Insert | Has Slinger |
| Global Part Number GPN | 556389 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.032 Inch | 51.613 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.625 Inch | 41.275 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | SNA210-31 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stainless Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | No Pilot |
