Specifications

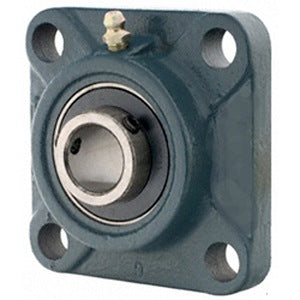

| title | UCF204D1 |
| price | $ 35.68 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.59 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 1.3 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 4547359001150 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552755 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.52 Inch | 64 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UC204D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
