FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

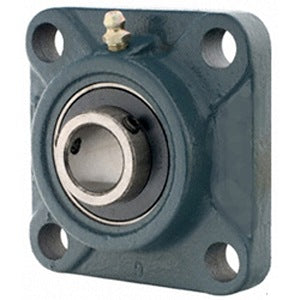

| title | UCF212-207D1 |
| price | $ 112.53 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 3.854 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 9.7 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 4547359502374 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552657 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.625 Inch | 142.875 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.9 Inch | 200.7 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UC212-207D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
