Specifications

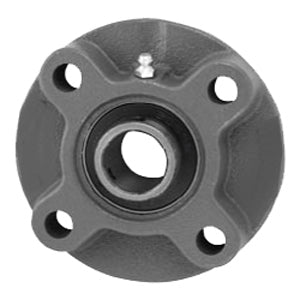

| title | UCFC201-8 |
| price | $ 44.84 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.726 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.6 |
| Bore | 0.5 Inch | 12.7 Millimeter |
| EAN | 0808250321698 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527580 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Cartridge Pilot Diameter | 2.441 Inch | 62 Millimeter |
| Cartridge Pilot Depth | 0.197 Inch | 5 Millimeter |
| Bolt Spacing | 2.2 Inch | 55.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.1 Inch | 78 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UC201-8 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
