Specifications

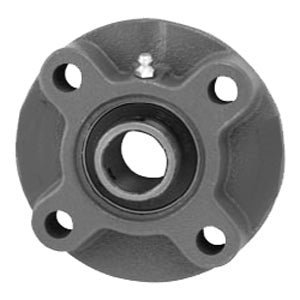

| title | UCFC217-52 |
| price | $ 481.93 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 9.99 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 22 |
| Bore | 3.25 Inch | 82.55 Millimeter |
| EAN | 0808250322282 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527614 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.374 Inch | 85.7 Millimeter |
| Cartridge Pilot Diameter | 7.087 Inch | 180 Millimeter |
| Cartridge Pilot Depth | 0.709 Inch | 18 Millimeter |
| Bolt Spacing | 5.791 Inch | 147.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.2 Inch | 208 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UC217-52 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
