Specifications

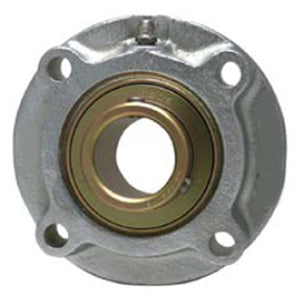

| title | UCFCF205-15NP |
| price | $ 82.45 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.081 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.6 |
| Bore | 0.938 Inch | 23.825 Millimeter |
| EAN | 0808250322312 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 529343 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.339 Inch | 34 Millimeter |
| Cartridge Pilot Diameter | 3 Inch | 76.2 Millimeter |
| Cartridge Pilot Depth | 0.25 Inch | 6.35 Millimeter |
| Bolt Spacing | 2.563 Inch | 65.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.7 Inch | 95 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | UC205-15 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
