Specifications
| title | UCFCS212C4HR23 |
| price | $ 430.69 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 3.74 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 8.23 |
| Bore | 2.362 Inch | 60 Millimeter |
| EAN | 0808250269372 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 450 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 528922 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 0.866 Inch | 22 Millimeter |
| Bolt Spacing | 4.2 Inch | 107.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 6 Inch | 152 Millimeter |

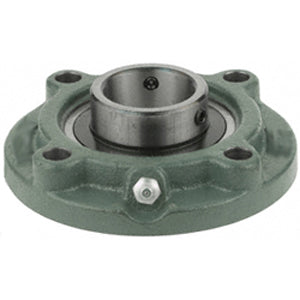

| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 14 Millimeter |
| Insert Part Number | UC212C4HR23 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
