Specifications

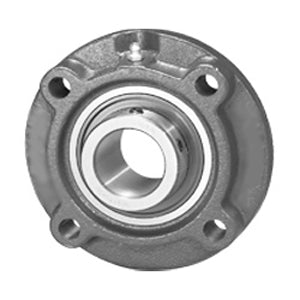

| title | UCFCX 13 65MM |
| price | $ 217.07 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI |
| Inch - Metric | Metric |
| Brand | IPTCI |
| Weight / LBS | 12.5 |
| Bore | 2.559 Inch | 65 Millimeter |
| Other Features | Single Row | Spherical | Medium Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 557633 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.937 Inch | 74.6 Millimeter |
| Cartridge Pilot Diameter | 5.512 Inch | 140 Millimeter |
| Cartridge Pilot Depth | 0.787 Inch | 20 Millimeter |
| Bolt Spacing | 4.6 Inch | 117 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.5 Inch | 165 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UCX13 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | With Pilot |
