Specifications

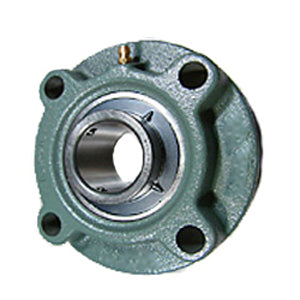

| title | UCFCX13-208D1 |
| price | $ 213.29 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 5.9 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 13 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 4547359213003 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553730 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.937 Inch | 74.6 Millimeter |
| Cartridge Pilot Diameter | 5.5 Inch | 139.7 Millimeter |
| Cartridge Pilot Depth | 0.781 Inch | 19.837 Millimeter |
| Bolt Spacing | 4.594 Inch | 116.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.5 Inch | 165 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UCX13-208D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
