Specifications

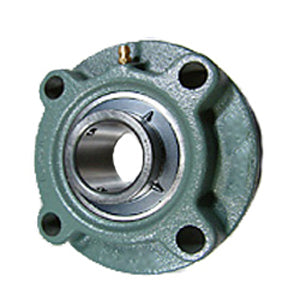

| title | UCFCX15D1 |
| price | $ 336.14 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 18 |
| Bore | 2.953 Inch | 75 Millimeter |
| EAN | 4547359213072 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553726 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.252 Inch | 82.6 Millimeter |
| Cartridge Pilot Diameter | 6.457 Inch | 164 Millimeter |
| Cartridge Pilot Depth | 0.866 Inch | 22 Millimeter |
| Bolt Spacing | 5.291 Inch | 134.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | UCX15D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
