FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

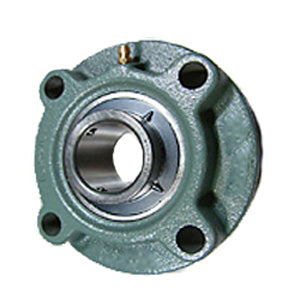

| title | UCFCX17-307D1 |
| price | $ 505.40 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 26 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 4547359213096 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553725 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.78 Inch | 96 Millimeter |
| Cartridge Pilot Diameter | 7.375 Inch | 187.32 Millimeter |
| Cartridge Pilot Depth | 0.984 Inch | 25 Millimeter |
| Bolt Spacing | 6.094 Inch | 154.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.6 Inch | 218.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | UCX17-307D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
