Specifications

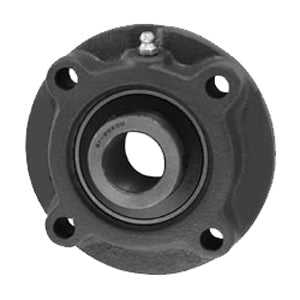

| title | UCFCX18-56 |
| price | $ 658.35 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 12.621 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 27.8 |
| Bore | 3.5 Inch | 88.9 Millimeter |
| EAN | 0808250323364 |
| Other Features | Single Row | Spherical | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527562 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.094 Inch | 104 Millimeter |
| Cartridge Pilot Diameter | 7.375 Inch | 187.32 Millimeter |
| Cartridge Pilot Depth | 1.102 Inch | 28 Millimeter |
| Bolt Spacing | 6.1 Inch | 154.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.6 Inch | 218.4 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UCX18-56 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
