Specifications
| title | UCFK206TCMZ2 |
| price | $ 79.72 / each |

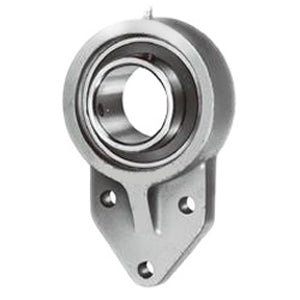

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.94 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.07 |
| Bore | 1.181 Inch | 30 Millimeter |
| EAN | 0808250296385 |
| Other Features | Single Row | Spherical | Normal Duty | Zinc Coated Insert | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 536375 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.142 Inch | 29 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 8 Millimeter |
| Insert Part Number | UC206MZ2 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Teflon Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
