Specifications

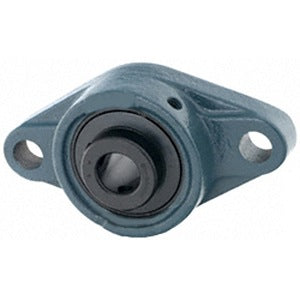

| title | UCFL204C4HR23 |
| price | $ 102.41 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.45 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 1 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 0808250156375 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 450 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 536328 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.22 Inch | 31 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.543 Inch | 90 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.5 Inch | 90 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UC204C4HR23 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
