Specifications

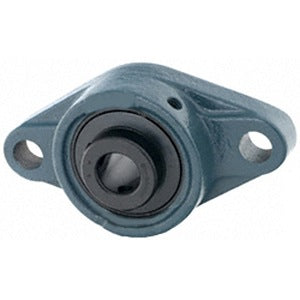

| title | UCFL212-39NP |
| price | $ 164.76 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.1 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 9.04 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 0808250324309 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 528247 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.953 Inch | 202 Millimeter |
| Nominal Bolt Circle Diameter Round | 8 Inch | 202 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | UC212-39 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
