Specifications

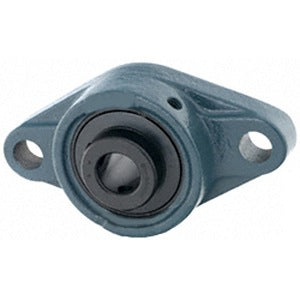

title | UCFL218-56C4HR23 |
price | $ 1,237.15 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | ASAHI BEARINGS |
Weight / kgm | 10.996 |
Inch - Metric | Inch |
Brand | AMI BEARINGS |
Weight / LBS | 26.23 |
Bore | 3.5 Inch | 88.9 Millimeter |
EAN | 0808250277988 |
Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 450 Degree F | Has Slinger |
Relubricatable | Yes |
Global Part Number GPN | 535861 |
Mounting Method | Set Screw |
Length Thru Bore | 3.78 Inch | 96 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 10.438 Inch | 265.125 Millimeter |
Nominal Bolt Circle Diameter Round | 10.4 Inch | 265 Millimeter |
Housing Style | 2 Bolt Flange Block |
Number of Mounting Holes | 2 |
Mounting Bolts | 7/8 Inch |
Insert Part Number | UC218-56C4HR23 |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | Contact Seal |
Pilot Configuration | No Pilot |
