Specifications

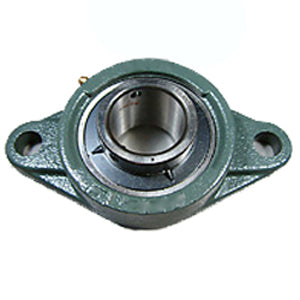

| title | UCFLU-1.3/4 |
| price | $ 105.71 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.006 |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 0.014 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| EAN | 4547359214741 |
| Other Features | Single Row | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553919 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.844 Inch | 148.438 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 33/64 Inch |
| Insert Part Number | A-UC209-112D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
