FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

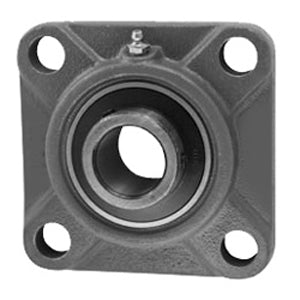

| title | UCFS314-44 |
| price | $ 427.48 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 11.53 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 25.4 |
| Bore | 2.75 Inch | 69.85 Millimeter |
| EAN | 0808250268931 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527536 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.071 Inch | 78 Millimeter |
| Cartridge Pilot Diameter | 7.283 Inch | 185 Millimeter |
| Cartridge Pilot Depth | 0.709 Inch | 18 Millimeter |
| Bolt Spacing | 7.008 Inch | 178 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.9 Inch | 251.7 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 22 Millimeter |
| Insert Part Number | UC314-44 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
