Specifications

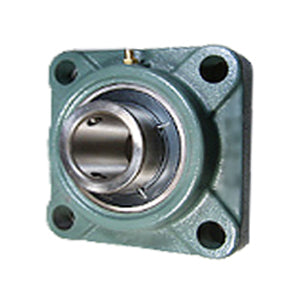

| title | UCFS317D1 |
| price | $ 731.76 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 37 |
| Bore | 3.346 Inch | 85 Millimeter |
| EAN | 4547359216844 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552636 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.78 Inch | 96 Millimeter |
| Cartridge Pilot Diameter | 8.661 Inch | 220 Millimeter |
| Cartridge Pilot Depth | 0.787 Inch | 20 Millimeter |
| Bolt Spacing | 8.031 Inch | 204 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.4 Inch | 288.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 27 Millimeter |
| Insert Part Number | UC317D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
