Specifications
| title | UCFS326D1 |
| price | $ 2,081.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 152.119 |
| Bore | 5.118 Inch | 130 Millimeter |
| EAN | 4547359501834 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552629 |
| Mounting Method | Set Screw |
| Length Thru Bore | 5.315 Inch | 135 Millimeter |
| Cartridge Pilot Diameter | 14.173 Inch | 360 Millimeter |
| Cartridge Pilot Depth | 1.181 Inch | 30 Millimeter |
| Bolt Spacing | 12.598 Inch | 320 Millimeter |
| Nominal Bolt Circle Diameter Round | 17.8 Inch | 452.6 Millimeter |

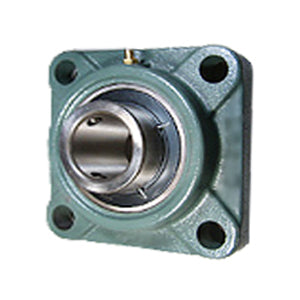

| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 36 Millimeter |
| Insert Part Number | UC326D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
