Specifications

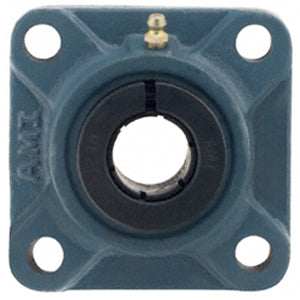

| title | UEF212NP |
| price | $ 255.10 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.713 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 11.64 |
| Bore | 2.362 Inch | 60 Millimeter |
| EAN | 0808250290680 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 535045 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.622 Inch | 66.6 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.63 Inch | 143 Millimeter |
| Nominal Bolt Circle Diameter Round | 8 Inch | 202 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | UE212 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
