FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

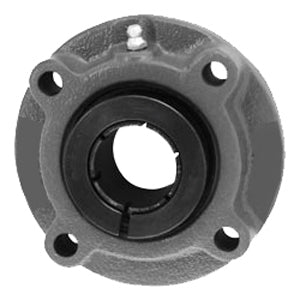

| title | UEFCS212-39NP |
| price | $ 288.81 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.02 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 8.85 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 0808250291380 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 529056 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.622 Inch | 66.6 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 0.875 Inch | 22.225 Millimeter |
| Bolt Spacing | 4.2 Inch | 107.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.9 Inch | 150 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UE212-39 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Pilot Configuration | With Pilot |
