Specifications

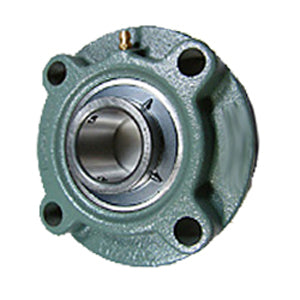

| title | UELFC207-104D1 |
| price | $ 111.79 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 4 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 4547359234046 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Spigot Joint | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552364 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.012 Inch | 51.1 Millimeter |
| Cartridge Pilot Diameter | 3.543 Inch | 90 Millimeter |
| Cartridge Pilot Depth | 0.313 Inch | 7.95 Millimeter |
| Bolt Spacing | 3.063 Inch | 77.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | UEL207-104D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
