Specifications

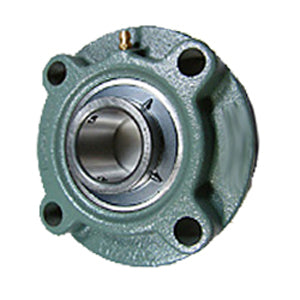

| title | UELFC211-203D1 |
| price | $ 180.00 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 9.5 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 4547359504255 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Spigot Joint | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552404 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.811 Inch | 71.399 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 0.469 Inch | 11.913 Millimeter |
| Bolt Spacing | 4.172 Inch | 105.969 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.9 Inch | 149.9 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UEL211-203D1W3 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
