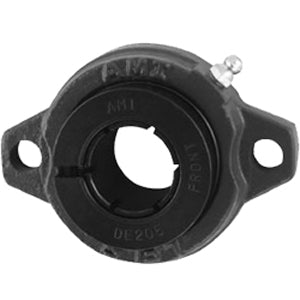

![UELFL206TC Flange Block Bearings](http://www.lilybearingonline.com/cdn/shop/products/INDASIFBXXXX-UELFL-2BLT-300x300_71e0b529-b693-46fd-ba7f-15cb95f45738_{width}x.jpg?v=1571800813)
FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications
title | UELFL206TC |
price | $ 102.12 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.40 |
Manufacturer Name | ASAHI BEARINGS |
Weight / kgm | 0.72 |
Inch - Metric | Metric |
Brand | AMI BEARINGS |
Weight / LBS | 1.58 |
Bore | 1.181 Inch | 30 Millimeter |
EAN | 0808250292158 |
Other Features | Single Row | Spherical | Normal Duty |
Relubricatable | Yes |
Global Part Number GPN | 535087 |
Mounting Method | Concentric Collar |
Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
Bolt Spacing | 3.563 Inch | 90.5 Millimeter |
Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
Housing Style | 2 Bolt Flange Block |
Number of Mounting Holes | 2 |
Mounting Bolts | 10 Millimeter |
Insert Part Number | UE206 |
Housing Configuration | 1 Piece Solid |
Housing Material | Teflon Coated Cast Iron |
Expansion / Non-expansion | Non-expansion |
Pilot Configuration | No Pilot |
