Specifications

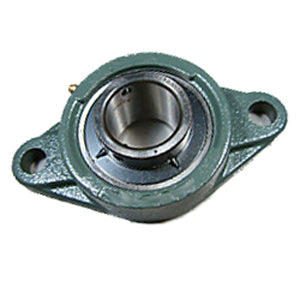

| title | UELFL207-104D1 |
| price | $ 62.21 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 2.9 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 4547359504699 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552308 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.012 Inch | 51.105 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.125 Inch | 130.175 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 129.5 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | UEL207-104D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
