Specifications

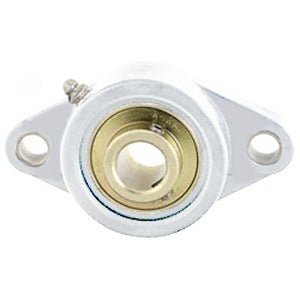

| title | UENFL206-18W |
| price | $ 108.68 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.55 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.21 |
| Bore | 1.125 Inch | 28.575 Millimeter |
| EAN | 0808250162260 |
| Other Features | Single Row | Spherical | Normal Duty | White Housing | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 534978 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.469 Inch | 37.3 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.609 Inch | 117.069 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.6 Inch | 117 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | UE206-18 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
