FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

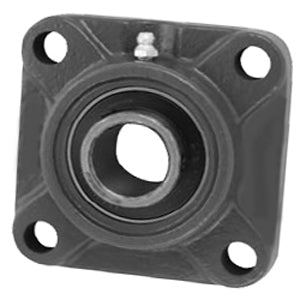

| title | UGFC211-35 |
| price | $ 166.98 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 8.8 |
| Bore | 2.188 Inch | 55.575 Millimeter |
| EAN | 0808250334001 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527069 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.813 Inch | 71.45 Millimeter |
| Cartridge Pilot Diameter | 5 Inch | 127 Millimeter |
| Cartridge Pilot Depth | 0.472 Inch | 12 Millimeter |
| Bolt Spacing | 4.2 Inch | 107.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.9 Inch | 150 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | UG211-35 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
