FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

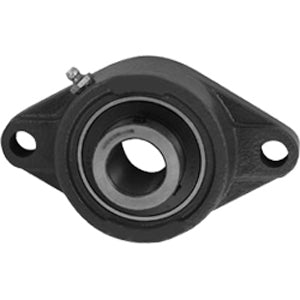

| title | UGFL308-24 |
| price | $ 197.56 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.63 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 5.8 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 0808250234905 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527074 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.248 Inch | 57.1 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6.219 Inch | 157.963 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.2 Inch | 157 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | UG308-24 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
