Specifications

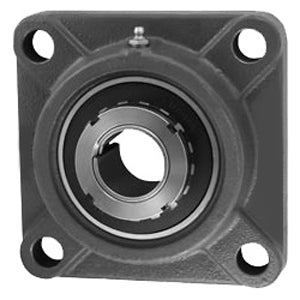

| title | UKF213+H313 |
| price | $ 216.88 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.99 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 11 |
| Bore | 2.362 Inch | 60 Millimeter |
| EAN | 0808250334759 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 527086 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 1.969 Inch | 50 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.866 Inch | 149 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.3 Inch | 211 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | UK213 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
