Specifications

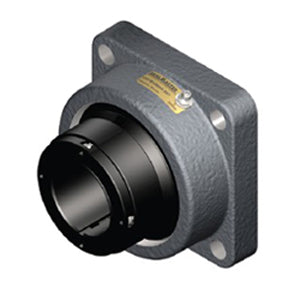

| title | USFB5000AE-208 |
| price | $ 628.17 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 16.2 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 662461358092 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 4.313 Inch | 109.55 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 4.766 Inch | 121.06 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.8 Inch | 171.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | USI5000A-208 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
