Specifications

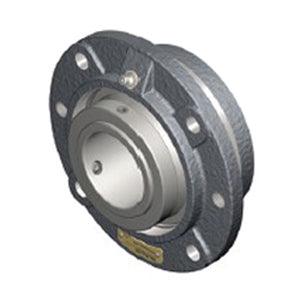

| title | USFC5000E-108-C |
| price | $ 359.88 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 6.4 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 662461362525 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.75 Inch | 69.85 Millimeter |
| Cartridge Pilot Diameter | 3.625 Inch | 92.08 Millimeter |
| Cartridge Pilot Depth | 1.281 Inch | 32.537 Millimeter |
| Bolt Spacing | 3.111 Inch | 79.019 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | USI5000-108-C |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Double Lip Contact |
| Pilot Configuration | With Pilot |
