Specifications

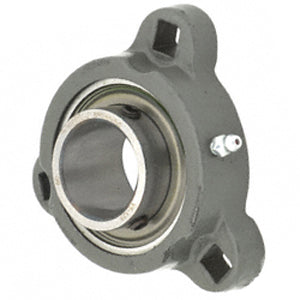

| title | VF3S-116M |
| price | $ 52.40 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 0.477 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 1.05 |
| Bore | 1 Inch | 25.4 Millimeter |
| EAN | 0662289543199 |
| Other Features | Single Row | Spherical | Intermediate Duty | Temperature Range From -20 to 200 Degree F |
| Relubricatable | Yes |
| Global Part Number GPN | 19277 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.109 Inch | 28.169 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.6 Inch | 66 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 23/64 Inch |
| Insert Part Number | VS-116 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
