Specifications

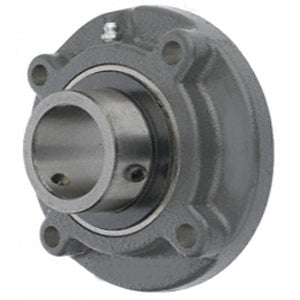

| title | VFCS-327 |
| price | $ 186.65 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 2.497 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 5.8 |
| Bore | 1.688 Inch | 42.875 Millimeter |
| EAN | 0662289520411 |
| Other Features | Single Row | Spherical | Medium Duty | Temperature Range From -20 to 200 Degree F | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 550132 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.6 Millimeter |
| Cartridge Pilot Diameter | 4.25 Inch | 107.95 Millimeter |
| Cartridge Pilot Depth | 0.469 Inch | 11.9 Millimeter |
| Bolt Spacing | 3.6 Inch | 91.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | VS-327 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | With Pilot |
