Specifications
| title | ZBR2100MM |
| price | $ 2,346.99 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 52 |
| Bore | 3.937 Inch | 100 Millimeter |
| EAN | 698210025854 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 554320 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.188 Inch | 131.775 Millimeter |
| Cartridge Pilot Diameter | 8.11 Inch | 206 Millimeter |
| Cartridge Pilot Depth | 1.5 Inch | 38.1 Millimeter |
| Bolt Spacing | 6.625 Inch | 168.275 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.4 Inch | 238 Millimeter |

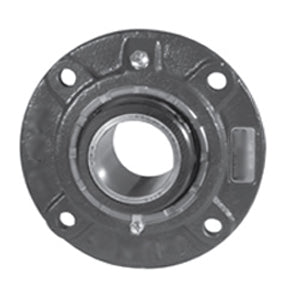

| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 19 Millimeter |
| Insert Part Number | 2100MMU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
