Specifications

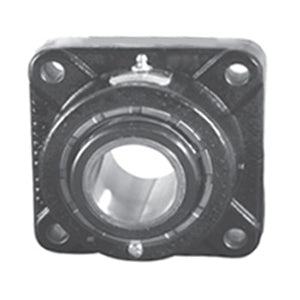

| title | ZF2400 |
| price | $ 2,059.40 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 66.5 |
| Bore | 4 Inch | 101.6 Millimeter |
| EAN | 698210906757 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 554239 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 5.188 Inch | 131.775 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 8.3 Inch | 210.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 11.7 Inch | 297 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 2400U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | No Pilot |
