FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

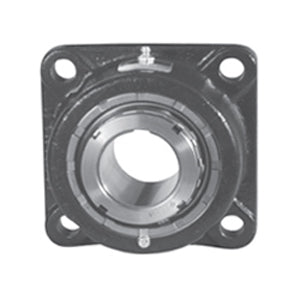

| title | ZF9055MMS |
| price | $ 2,090.75 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Metric |
| Brand | REXNORD |
| Weight / LBS | 16.4 |
| Bore | 2.165 Inch | 55 Millimeter |
| EAN | 698210921934 |
| Other Features | Double Row |
| Relubricatable | Yes |
| Global Part Number GPN | 554348 |
| Mounting Method | Tapered Adapter Sleeve |
| Length Thru Bore | 3.594 Inch | 91.288 Millimeter |
| Cartridge Pilot Diameter | 5.438 Inch | 138.13 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 5.031 Inch | 127.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.1 Inch | 180.3 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | 9055MMU |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
