FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

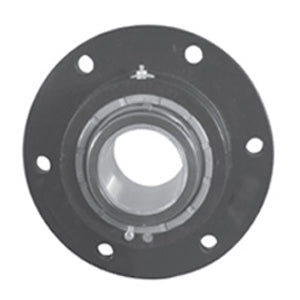

| title | ZFS5415S |
| price | $ 8,013.98 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 184 |
| Bore | 4.938 Inch | 125.425 Millimeter |
| EAN | 698210831080 |
| Other Features | Double Row | Double Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 554568 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 7.875 Inch | 200.025 Millimeter |
| Cartridge Pilot Diameter | 12.563 Inch | 319.1 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 7 Inch | 177.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 14 Inch | 355.6 Millimeter |
| Housing Style | 6 Bolt Round Flange Block |
| Number of Mounting Holes | 6 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | 5415U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
